Product Description:
Screw feeders, also known as screw conveyors, scraper conveyors,
and bucket conveyors, are types of conveying equipment. Their
primary components include a feeding hopper, feeding screw, and
transmission mechanism.
Working Principle:
The screw feeder utilizes a weighing bridge to measure the weight
of the conveyed material, determining its weight on the tape. A
digital speed sensor located at the tail continuously monitors the
feeder's operating speed. The speed sensor's pulse output
correlates with the feeder's speed, with both the speed and weight
signals being transmitted to the feeding controller. The
controller's microprocessor processes these signals to calculate
and display the cumulative quantity and instantaneous flow rate.
The flow rate is then compared to the preset flow rate, and the
control instrument's output signal adjusts the frequency converter
to modify the feeder's drive speed. This adjustment ensures that
the material flow rate aligns closely with the desired feed flow
rate, thereby achieving precise quantitative feeding.
Product Description
OEM Custom Double Screw U-Shape Pallet Concrete Auger Screw
Conveyor Feeder
| Model | GXW600-3500 |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Printing ... |
| Condition | New |
| Application | Medical, Chemical, Machinery & Hardware |
| Driven Type | Electric |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Key Selling Points | Easy to Operate |
| Video outgoing-inspection | Provided |
| Core Components | Motor |
| Product Name | Screw Feeder |
1. The structure of the screw feeder is simple, the cross-sectional
size is small, and the sealing performance is good;
2. The conveying material is uniform and stable, and the conveying
volume is high in precision;
3. The conveying volume can be controlled by adding a frequency
converter;
4. It also has the function of stirring and loosening materials
during the conveying process;
5. The operation is convenient, safe and convenient, and the
manufacturing cost is low.
Scope of application:
Applicable to various industrial sectors, such as building
materials, electric power, chemical industry, metallurgy, coal,
aluminum and magnesium, machinery, light industry, grain and food
industries.

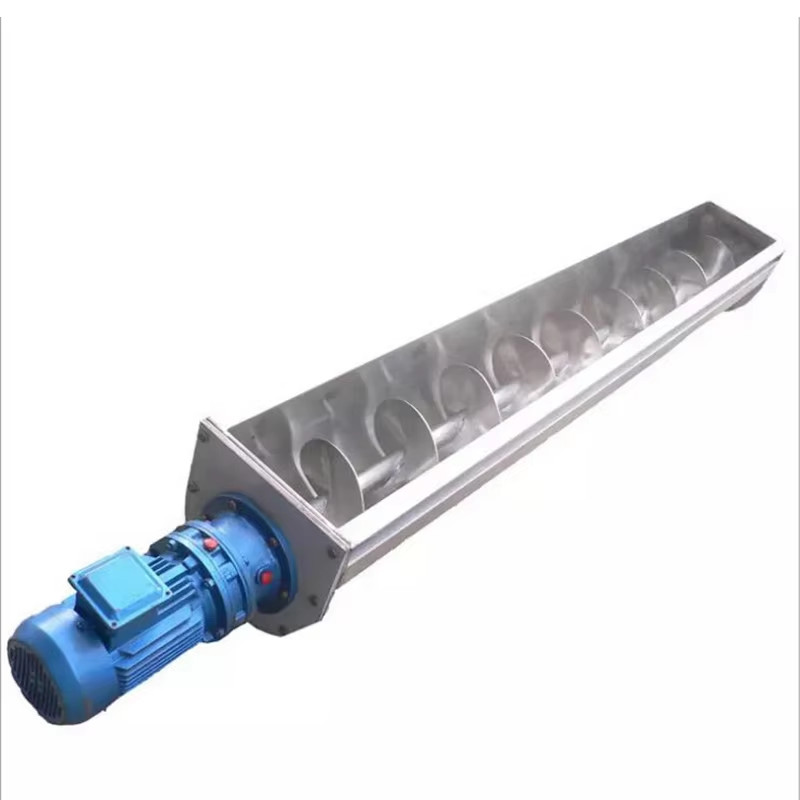

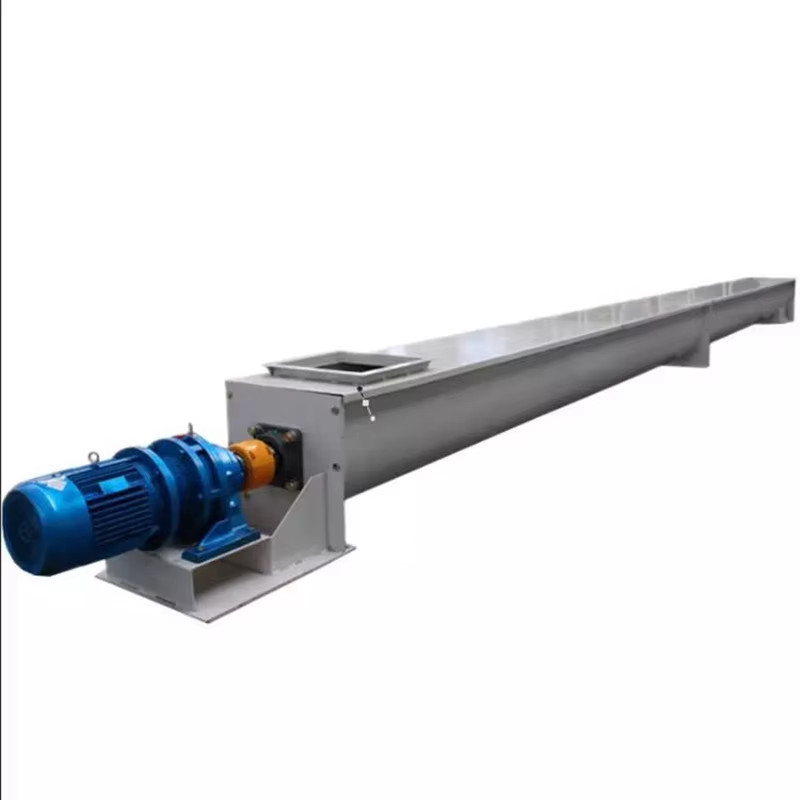

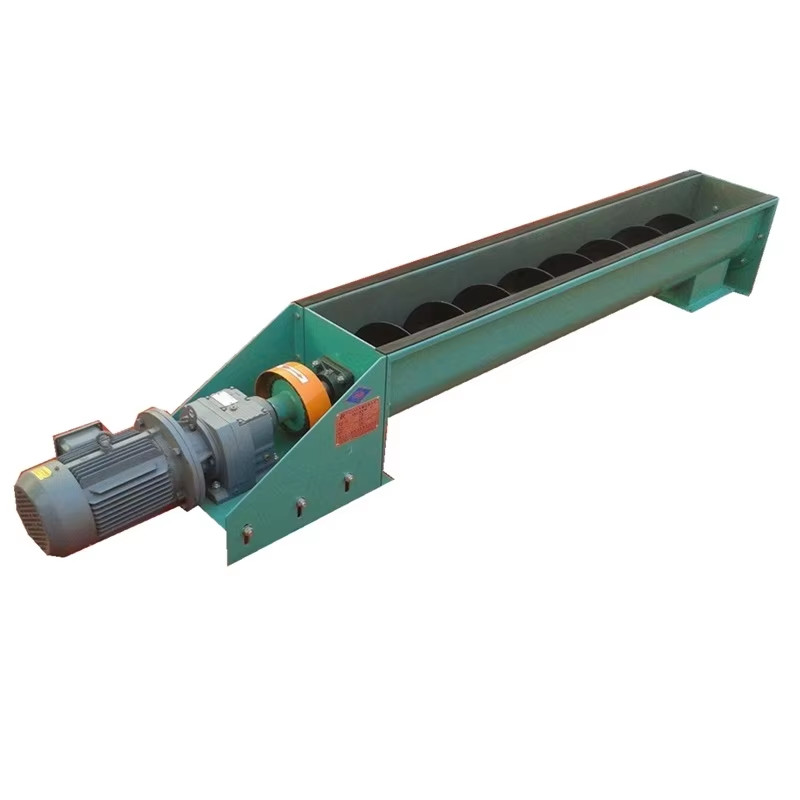

Product Display
