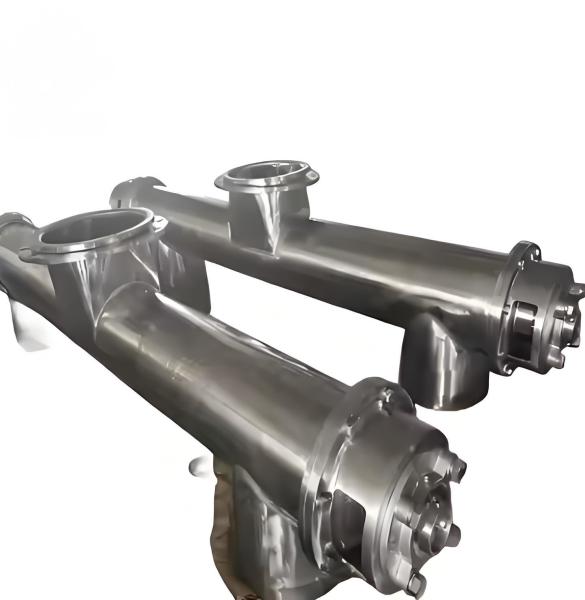

Stainless Steel Pneumatic Vacuum Screw Conveyor for PVC Powder with
Auger Tube
Screw Conveyor Function
Efficient Material Handling: This product employs advanced
conveying technology to efficiently and stably transport materials
from one location to another. Whether the materials are in powder,
granular, or bulk form, precise regulation enables continuous and
uniform conveying, significantly enhancing production efficiency.
High Flexibility and Adaptability: The product design fully
considers the requirements of different material characteristics
and conveying environments, offering broad adaptability. It allows
for adjustments in conveying speed, pressure, and angle based on
material properties, ensuring that materials remain undamaged
during transportation while meeting conveying needs across various
application scenarios.
Intelligent Control and Management: Equipped with an advanced
intelligent control system, users can monitor the conveying status
in real-time via a touchscreen or remote monitoring system,
facilitating parameter adjustments and fault diagnosis. Intelligent
management not only enhances operational convenience but also
effectively reduces maintenance costs and downtime.
Screw Conveyor Application
1.Food Processing Industry: In food processing, this product can be
used to convey ingredients such as flour, sugar, salt, and grains,
as well as for packaging and distribution of finished products. Its
hygienic and efficient features align with the high food safety and
hygiene standards of the food processing industry.
2.Chemical Industry: In chemical production, this product is
suitable for conveying various powdered, granular, and bulk
chemical raw materials and products, such as plastic pellets,
fertilizers, and pigments. Its corrosion and wear resistance ensure
the purity and stability of chemical materials during conveyance.
3.Environmental Protection and Waste Management: In the
environmental protection sector, this product can be used to convey
sludge, waste, and various materials involved in recycling and
treatment processes. Its robust conveying capacity and flexibility
contribute to effective waste management and resource recycling.
4.Mining and Quarrying: In mining and quarrying operations, this
product can be used to convey ore, crushed stone, sand, and soil.
Its sturdy and durable design, coupled with high conveying
efficiency, ensures efficient mining operations.
5.Agriculture and Livestock Farming: In agriculture and livestock
farming, this product can be used to convey feed, grain, crops, and
other materials. Its strong adaptability and ease of operation
contribute to improved agricultural production efficiency and
animal feeding quality.
Screw Conveyor Technical Parameters
| Attribute/Parameter | Description/Specification |
|---|
| Material | |
| Conveying Pipeline & Spiral Blade | 304/316 Stainless Steel |
| Frame | Carbon Steel with Plastic Spraying |
| Conveying Capacity | 5-50m³/h (Adjusted According to Material Characteristics and
Conveying Distance) |
| Conveying Distance | |
| Horizontal | ≤30m |
| Incline/Vertical | Determined Based on Specific Design and Material Characteristics |
| Conveying Speed | Adjustable, Range: 0.5-5m/s (Adjusted According to Material
Characteristics and Process Requirements) |
| Motor Power | 1.5-11kW (Determined According to Conveying Capacity and
Configuration) |
| Voltage/Frequency | 380V/50Hz (Customizable According to Customer Needs) |
| Control Mode | Smart Touch Control Panel + Remote Monitoring (PLC Control System
Optional) |
| Safety Protection | Overload Protection, Emergency Stop Button, Fault Alarm System |
| Installation Mode | Horizontal, Incline, Vertical Installation (Customized According to
Site Conditions) |
| Applicable Materials | Powdered, Granular, Lumpy, and Other Types of Materials
(Specifically Determined Based on Material Characteristics) |
| Working Environment | Temperature: -20°C to +40°C; Humidity: ≤90% (Non-condensing) |
