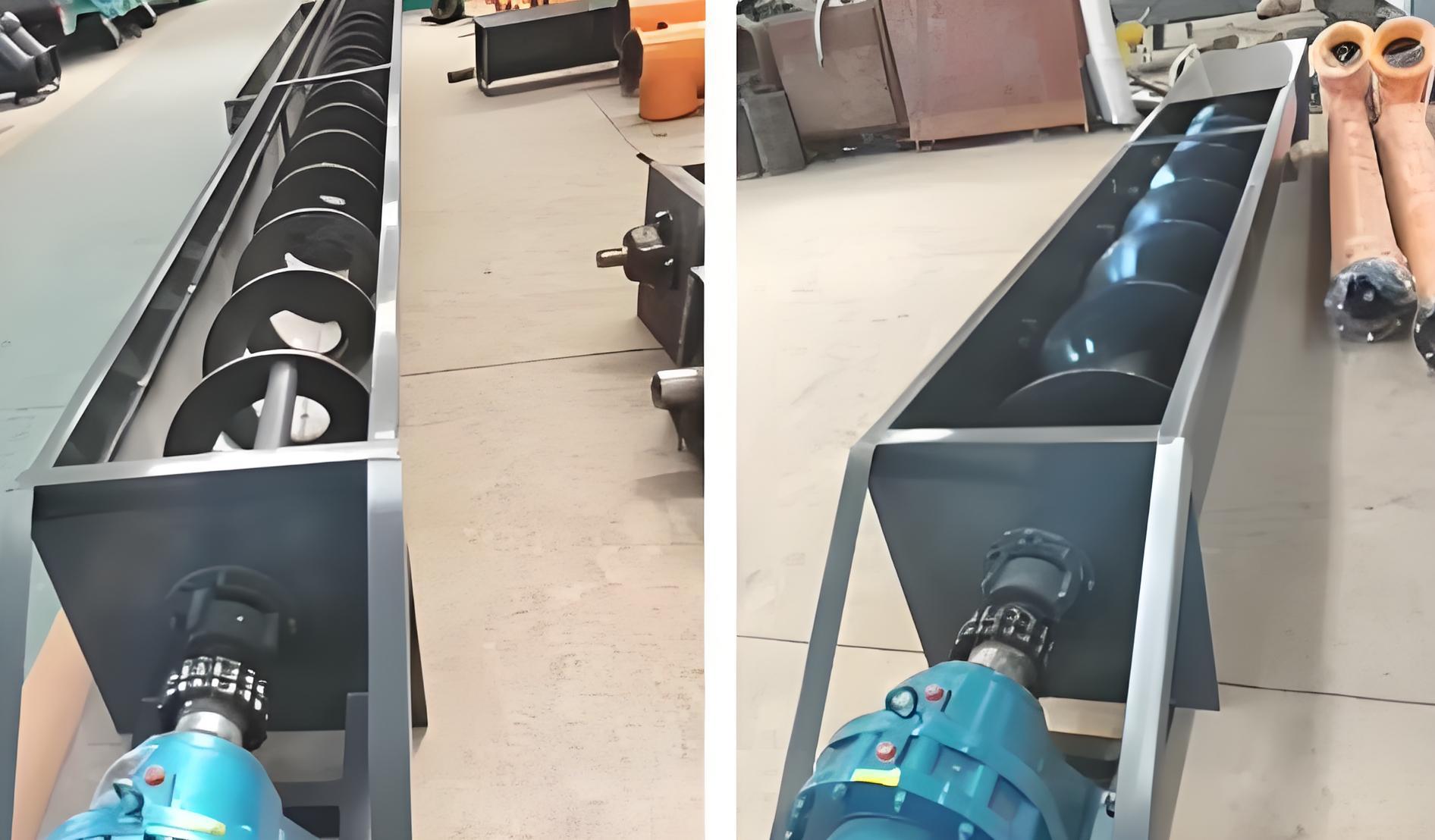

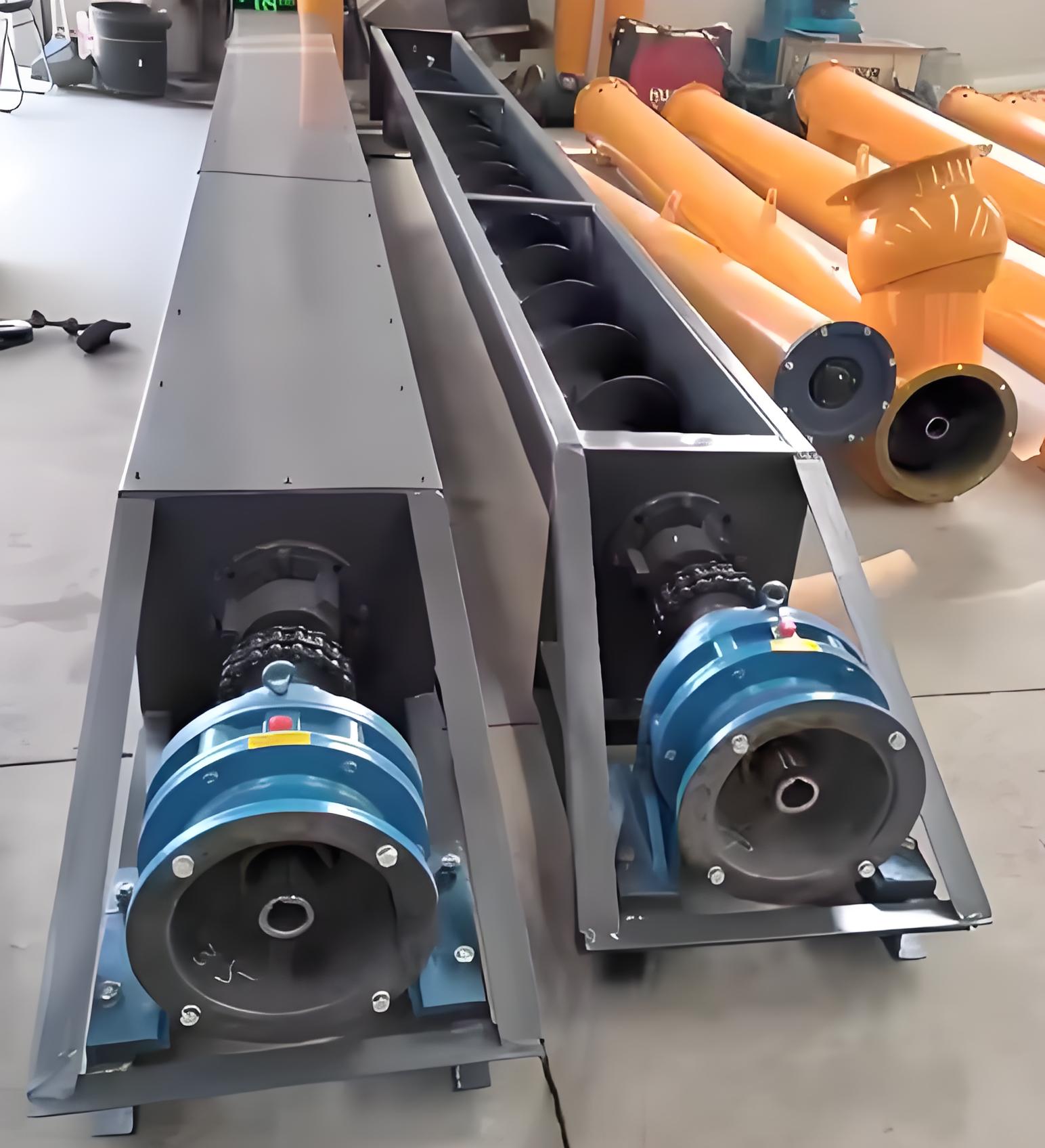

U-shaped Spiral Conveyor Equipment for Cement and Concrete Granular
Material Transportation
U-shaped Spiral Conveyor Equipment System Function
Continuous and Efficient Conveying: Utilizing the principle of
spiral rotation, it achieves uninterrupted and continuous conveying
of materials, significantly enhancing production efficiency.
Strong Adaptability: Suitable for conveying various materials
including cement, concrete granules, sand, stones, etc., meeting
diverse production needs.
Stable Structure: Composed of a drive motor, gearbox, and
shell-tube spiral body, it ensures long-term stable operation with
a robust structure.
U-shaped Spiral Conveyor Equipment Application
1.Building Materials Industry: Used for conveying building
materials such as cement, sand, and concrete, supporting material
requirements at construction sites and factories.
2.Chemical Industry: Suitable for conveying chemical raw materials
like fertilizer and ash, improving production efficiency and
reducing labor costs.
3.Coal Industry: Capable of conveying coal products such as coal
powder and small coal lumps, supporting coal processing and energy
production.
4.Grain Processing: Suitable for conveying grain products like
flour and cereals, maintaining food quality and enhancing
production efficiency.
5.Environmental Protection: Used for conveying waste and recycled
materials, supporting environmental protection and resource
recycling efforts.
U-shaped Spiral Conveyor Equipment Technical Parameter
| Attribute | Description |
|---|
| Equipment Type | U-shaped Spiral Conveyor |
| Material | Stainless Steel (other materials are optional) |
| Conveying Method | Spiral rotation |
| Conveying Capacity | Depends on specific models and configurations, capable of conveying
multiple materials |
| Structural Feature | Connected by a drive motor, gearbox, and shell-tube spiral body,
with a stable structure |
| Blade Type | Solid face type, ribbed type, etc., selected according to the
material being conveyed |
| Thrust Bearing | Equipped with a thrust bearing at the end of the screw shaft,
supporting long-distance conveying |
| Suspension Bearing | Intermediate suspension bearings are added when the screw tube is
long, ensuring stable operation |
| Conveying Direction | Customizable according to requirements |
| Conveying Distance | Depends on specific configurations, supporting both long and
short-distance conveying |
| Application Scope | Multiple industries including building materials, chemicals, coal,
grain processing, and environmental protection |
| Maintenance and Care | Regular inspections and maintenance ensure long-term stable
operation and extend service life |
