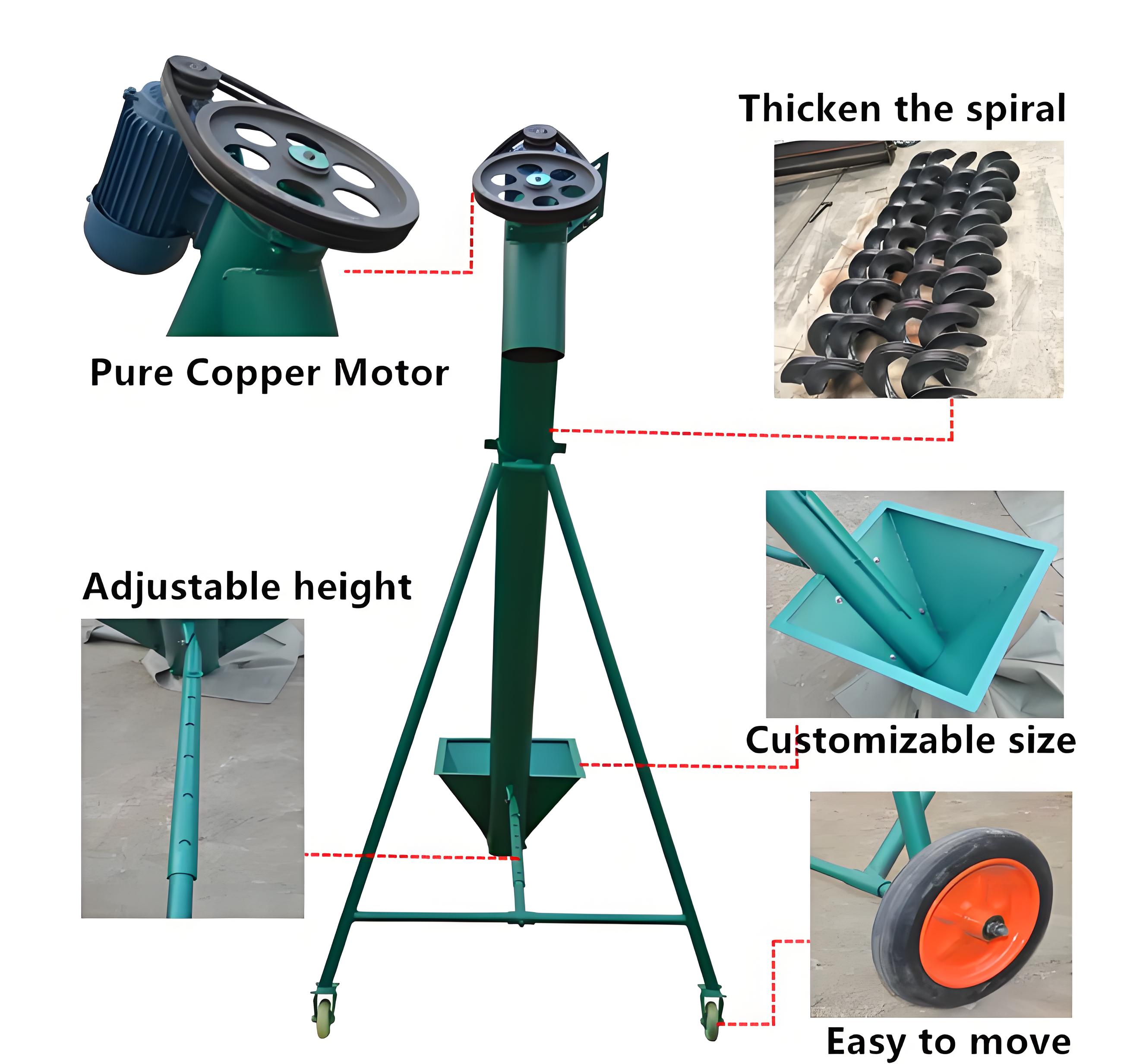

Stainless Steel Vertical and Inclined Spiral Feeder Conveyor for Grain Handling
Inclined Spiral Feeder Function
Efficient Conveyance: Utilizes an electric motor to drive the spiral rotation, achieving efficient conveyance of powdered, granular, and bulk materials such as grains.
Compact Structure: Designed with simplicity, small cross-sectional
area, and excellent sealing properties, saving space while reducing
dust emission.
Convenient Operation: Easy to install and move, with simple
operation and maintenance, enhancing labor efficiency and reducing
labor intensity.
Inclined Spiral Feeder Application
1.Chemicals: Suitable for conveying and processing chemical raw materials.
2.Construction: Used for conveying construction materials such as sand, gravel, and cement on construction sites.
3.Mining: Utilized for conveying materials such as ore and coal powder in mining operations.
4.Cement: Conveying raw materials and finished products during cement production.
5.Grain: Loading and unloading, as well as conveying of grains during grain processing and storage.
Inclined Spiral Feeder Technical Parameters
Item | Description/Specification |
---|---|
Product Name | Steel Tube Spiral Conveyor |
Voltage | 380-440V |
Motor Power | 3-22 kW |
Length | Customized |
Loading Capacity | 3-80 tons/hour |
Conveying Speed | Customized |
Conveying Distance | 2-40 meters |
Material Options | Galvanized Carbon Steel / 201/304 Stainless Steel |
Conveying Direction | Reversible or simultaneous bidirectional conveying |
Structural Characteristics | Simple structure, good sealing performance |
Operational Characteristics | Easy installation and mobility, simple operation and maintenance |
Application Industries | Chemical, construction, mining, cement, grain, etc. |
![]() |
