Industrial U-Trough Spiral Shaft Efficient Plastic Cement Sand
Concrete Sludge Coal Slurry Conveyor

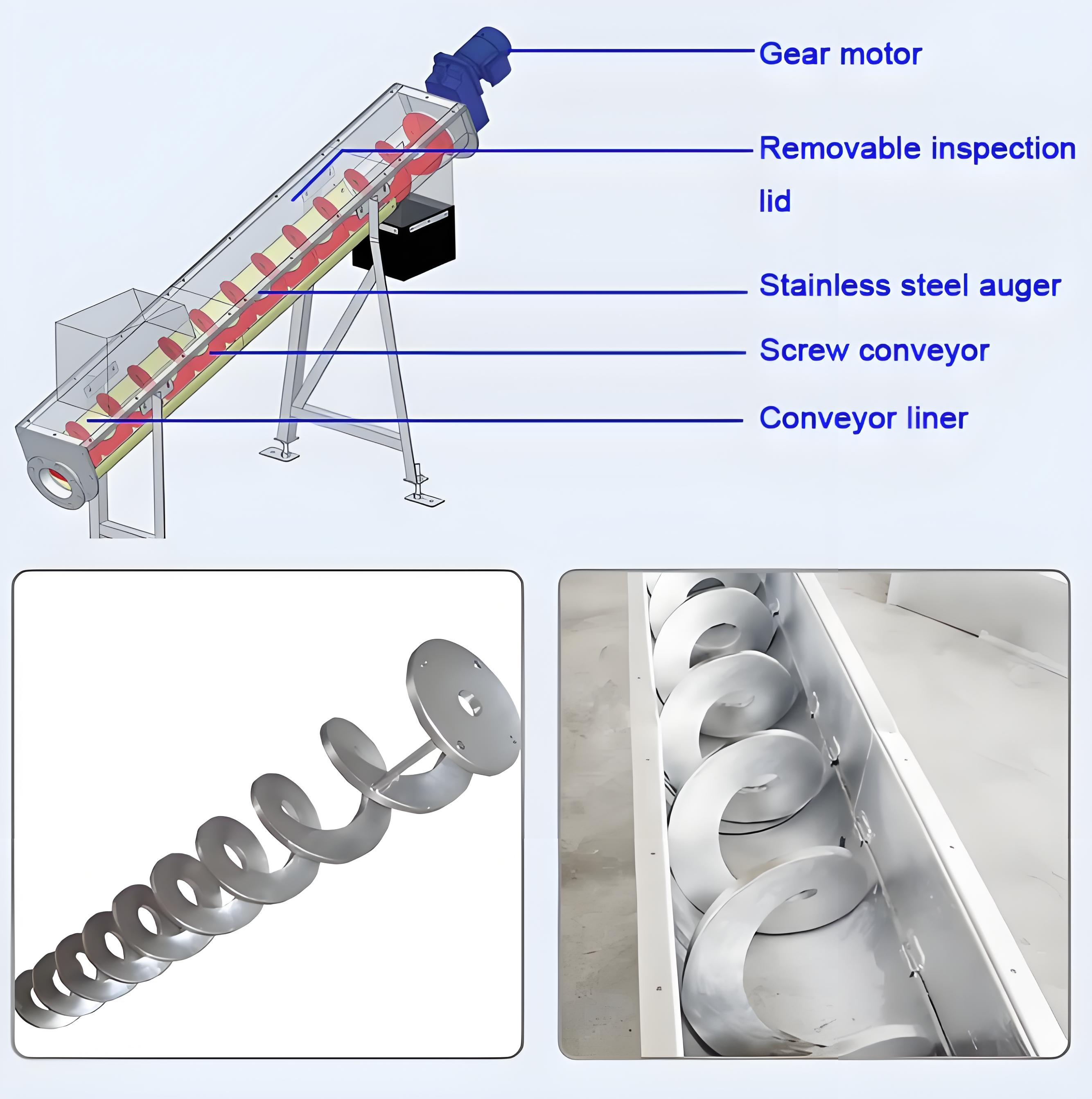

Spiral Conveyor Function
Ease of Installation and Maintenance: The spiral conveyor's head
and tail bearings have been moved outside the casing, utilizing
sliding bearings, dust-proof sealing devices, and sliders for
simplified installation and maintenance.
Efficient Conveying Capacity: With a small diameter, high
rotational speed, and significant transmission capacity, combined
with a variable pitch spiral design, it achieves smooth, rapid, and
uniform material conveying.
Strong Adaptability: The conveyor possesses good overall rigidity,
capable of transporting products straight or steeply, directly
connecting with other equipment, and is easy to install and
dismantle, occupying a small footprint.
Spiral Conveyor Application
1.Coal Industry: Transportation and transfer of coal.
2.Cement Production: Conveying and mixing of cement powder.
3.Agricultural Production: Transportation of fertilizer, grain, and
other powdered or granular materials.
4.Metallurgical Industry: Transportation of metal powder, slag, and
other materials.
5.Chemical Industry: Conveyance of chemical raw materials, plastic
particles, and other products.

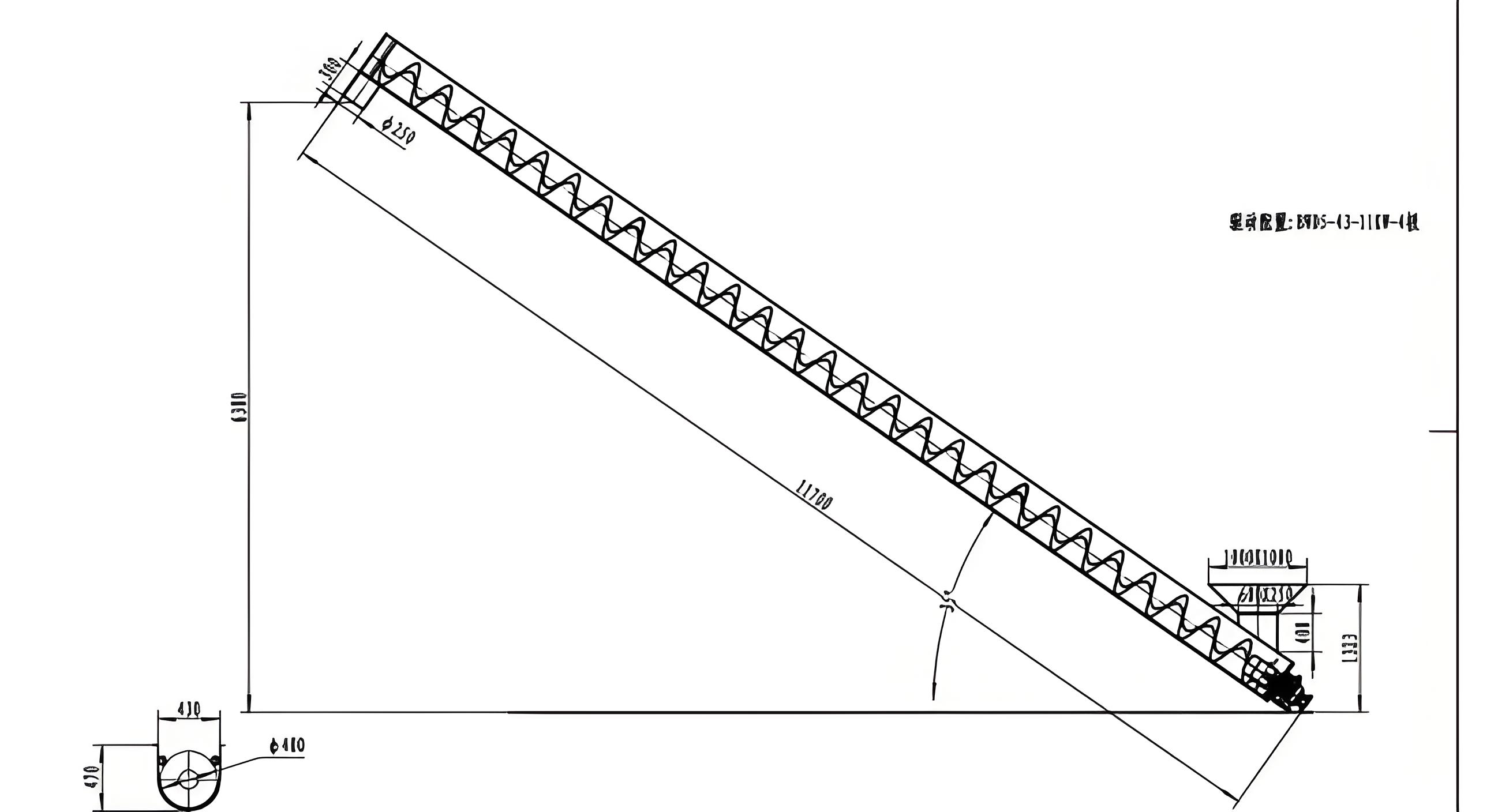

Spiral Conveyor Technical Parameters
| Attribute | Attribute Description |
|---|
| Model | Industrial U-Trough Spiral Shaft Conveyor |
| Material | Plastic, Metal (for sliding bearings, etc.) |
| Conveyed Media | Cement, Sand, Concrete, Sludge, Coal Slurry |
| Conveying Method | Spiral Conveying |
| Rotational Speed | High Rotational Speed |
| Transmission Capacity | Significant Transmission Capacity |
| Pitch Design | Variable Pitch |
| Lubrication Method | Low-Oil Lubrication with Slide Shoes, Integral Lubrication System |
| Sealing Performance | Reliable Dust Cover for Reducer, Multi-Layer Labyrinth Oil Seal |
| Installation & Maintenance | Easy Installation & Maintenance, Bearings Externally Mounted |
| Overall Rigidity | Good, Suitable for Straight or Steep Transportation |
| Application Areas | Coal, Cement, Agriculture, Metallurgy, Chemistry |
