Product Description
OEM custom stainless steel spiral auger conveyor
| Model | SLS300-3500 |
| Applicable Industries | Food & Beverage Factory, Construction works , Ceme... |
| Material | Stainless steel, Carbon steel |
| Structure | Conveyor System |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Core Components | Motor, Bearing |
| Feeding material | Power or granule |
| Length | Customized 1~30m |
| Processing | Painting, burnishing, Bead blasting |
| Speed | Adjsutable Speed |
| Material Feature | Heat Resistant |
| Dimension(L*W*H) | Depends on the model |
| Video outgoing-inspection | Provided |
| After Warranty Service | Video technical support, Online support |
| After-sales Service Provided | Online support |
| Type | Tube, trough, shaftless, vertical |

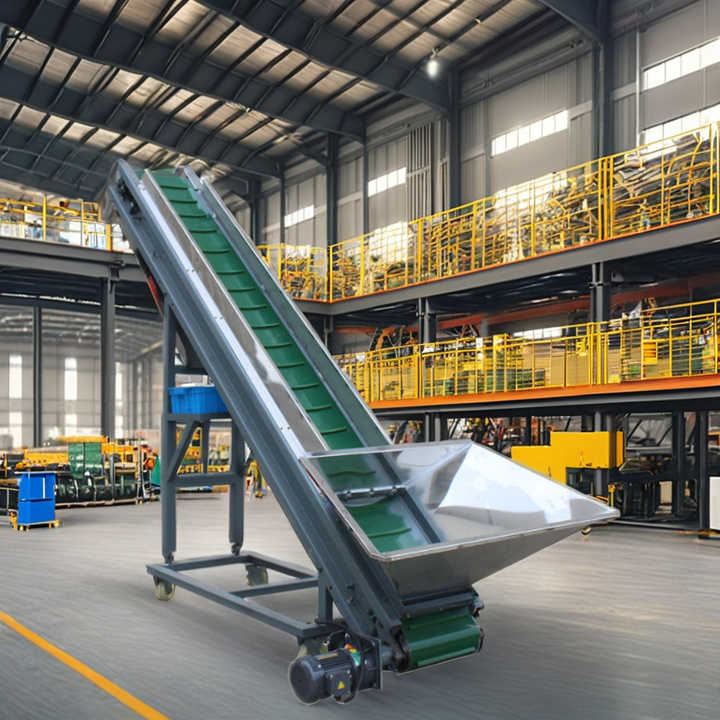

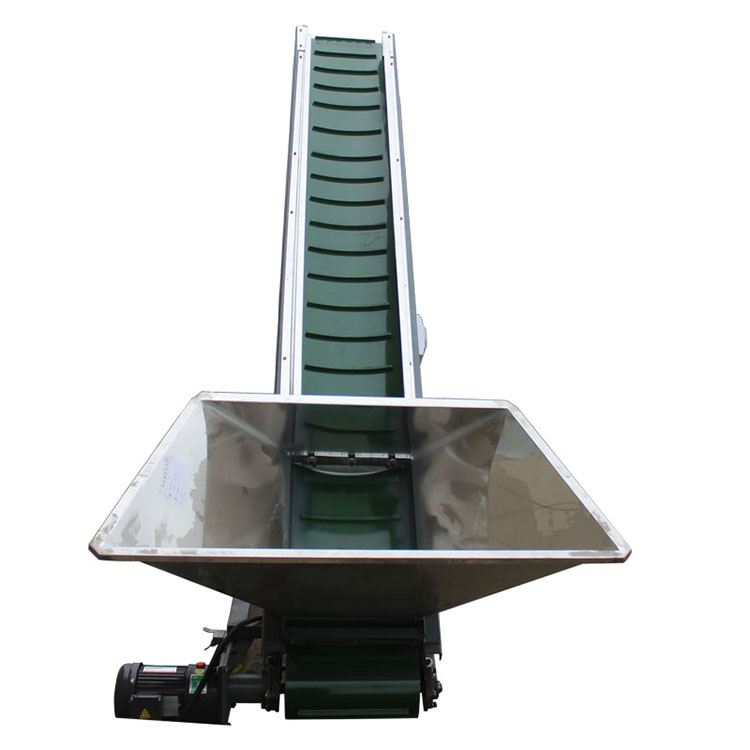

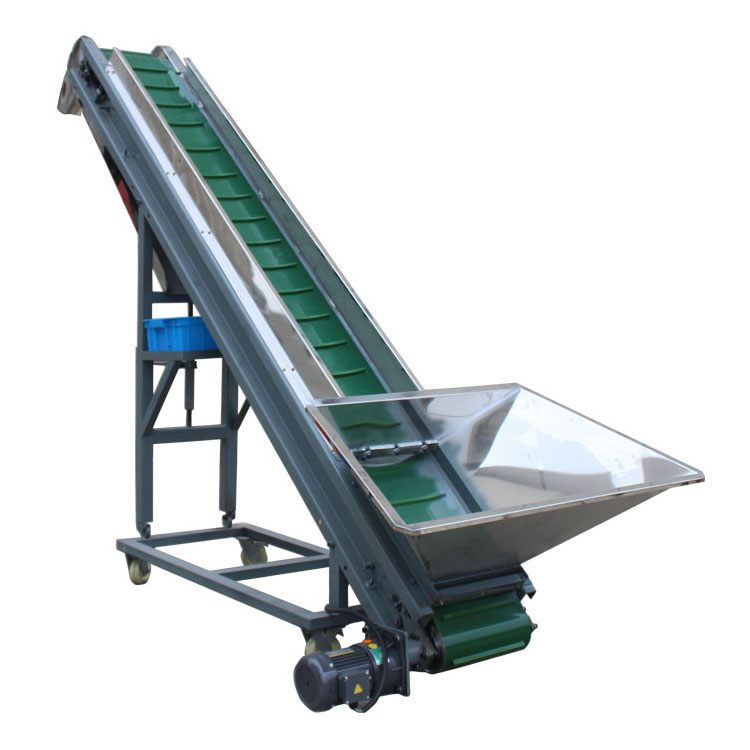

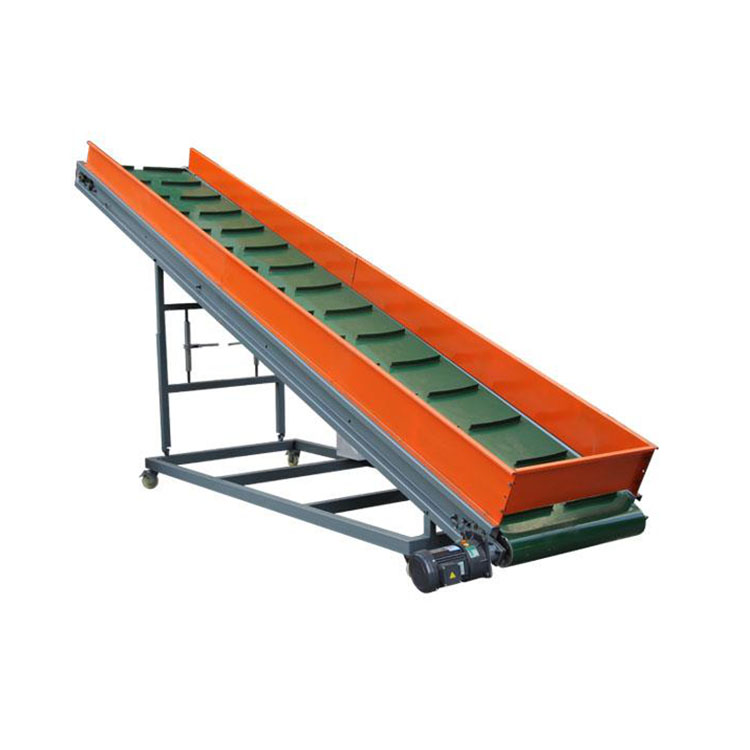

Industrial-grade anti-skid electric adjustable angle conveyor belt
is a heavy-duty material conveying solution designed for the mining
and packaging industries. It uses a high-temperature resistant
synthetic rubber belt (EP300 steel wire rope core) with
diamond-shaped anti-skid patterns on the surface (depth 3mm), which
can stably convey bulk materials (such as ore, coal, and bagged
goods) at -20℃ to 150℃. It is equipped with a hydraulic stepless
angle adjustment system (0°-30° inclination, adjustment time ≤30
seconds) and a 15kW variable frequency motor to achieve precise
control of the belt speed of 0.8-4.5m/s, with a maximum load
capacity of 3000kg/m. It supports OEM customization and provides
special configurations such as explosion-proof, waterproof (IP65),
acid and alkali resistance to meet the needs of complex scenarios
such as underground mines, port loading and unloading, and
automated packaging lines.
Working Principle:Power drive: The variable frequency motor drives the head drum to
rotate through the reducer, driving the circular belt to circulate.
Angle adjustment: The hydraulic legs are raised and lowered
synchronously, and the articulated frame is used to achieve
stepless adjustment of the conveying angle to meet dynamic needs
such as truck loading and unloading, stacking and transfer.
Anti-slip control:
The belt surface is molded with bidirectional diamond convex
patterns, and the friction coefficient is ≥0.45 (dry state)
The tail is equipped with a self-cleaning gravity tensioning device
to automatically compensate for the belt elongation
Material stability: Double-sided corrugated ribs (adjustable height
60-120mm) + anti-overflow skirt to ensure zero leakage of
granular/powder materials.
Features:✅ Industrial-grade anti-skid design
Diamond-patterned anti-skid layer: surface hardness Shore A 75°,
wear-resistant layer thickness 8mm, service life ≥20,000 hours
Anti-deviation system: laser centering roller + automatic deviation
correction roller group, offset ≤5cm automatic correction
✅ Intelligent angle adjustment
Hydraulic control inclination accuracy ±0.5°, support remote
control/PLC dual-mode operation
Modular segmented rack, can be extended to 50 meters, disassembly
and assembly time <2 hours
✅ High temperature and corrosion resistance
Belt cover glue temperature resistance 150℃ (short-term 180℃),
tensile strength ≥18MPa
Optional flame retardant and antistatic type (in line with MT914
coal mine standard) or food-grade PU belt
✅ Intelligent operation and maintenance system
Built-in vibration + temperature sensor, real-time monitoring of
bearing status (warning accuracy ±5℃)
7-inch touch screen displays load current, belt speed, cumulative
transportation volume and other data, supports RS485 communication
✅ In-depth customization service
Provide Explosion-proof motor (Ex d IIC T4), stainless steel frame,
mobile wheeled chassis, etc. 100+ configuration combinations
3D design plan issued within 48 hours, 3-year warranty (5-year for
core components)
| Serial No. | Model | conveyance capacity(m³/h) | Power(kw) | Groove inner width(mm) | Material |
| 1 | SLS100 | 0.1-0.5 | Specifically customized according to material, conveying volume and
angle. | 198 | carbon steel/stainless steel |
| 2 | SLS150 | 0.3-1.5 | 294 |
| 3 | SLS200 | 0.8-4.0 | 388 |
| 4 | SLS250 | 1.5-7.5 | 486 |
| 5 | SLS300 | 5.0-13.00 | 576 |
It is suitable for powdery, granular and small block materials in
chemical industry, environmental protection, food and other
industries.Product Display
