    Customizable Cement Screw Feeder Elevator Type Spiral Tube For Power Plant

    Ask Lasest Price
    Price : US$800~US$8,000 per pc
    Payment Terms : T/T, Western Union
    Supply Ability : 500000/Year
    Delivery Time : 10-20 working day
    • Product Details
    • Company Profile

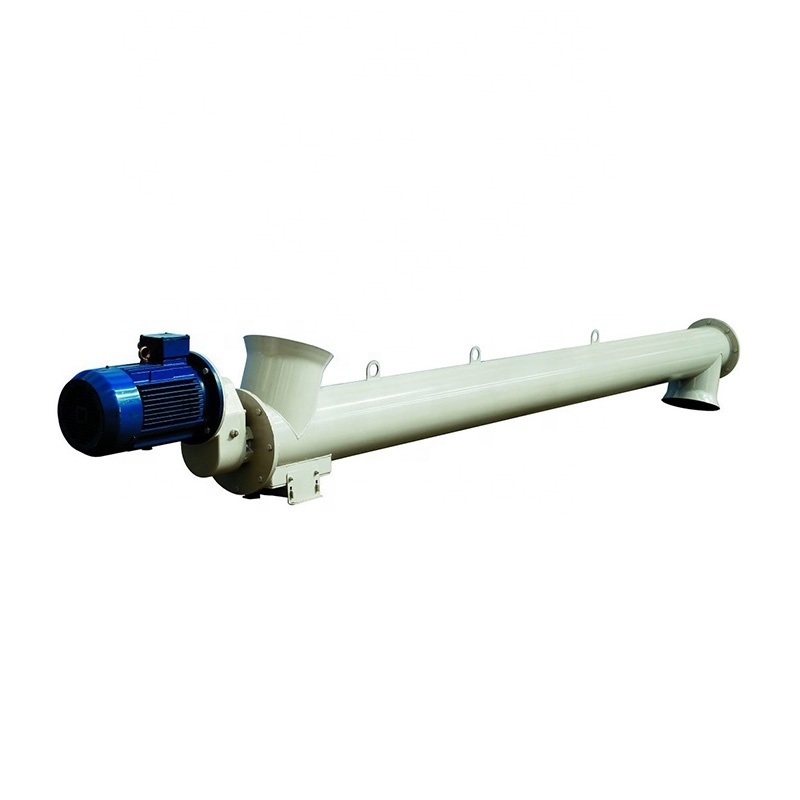

    Customizable Cement Screw Feeder Elevator Type Spiral Tube For Power Plant

    Product Description


    OEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger Conveyor

    Applicable IndustriesFood industry, Chemical Industry, Metallurgical Industry, Pharmaceutical industry, Grain industry, Building materials industry...
    MaterialCarbon steel & Stainless steel
    Voltage380V, or customized
    Warranty1 Year
    Machinery Test ReportProvided
    Core ComponentsMotor, Gearbox, Casing, Circle blade
    Handling Capacity3-450t/h
    Conveying length2-45m
    Screw Blade Diameter160-1000 mm
    Drive MethodGear Motor/ Motor+Gearbox
    ConditionNew
    StructureSpiral Type
    Width or Diameter200-1000mm
    Video outgoing-inspectionProvided
    Rotating Speed13-140 Rpm
    Screw Blade Pitch160-600 mm
    Structure TypeU Shape/Tube Shape
    Layout FormHorizontal or Inclined

    Product Description:
    The conveying process of screw conveyor is mainly to rely on the driving device to provide power, through the coupling connected to the spiral bearing for movement. When the screw shaft rotates, due to the gravitational force of the material and the friction force generated with the wall of the tank body, the material can only move forward along the groove bottom of the conveyor under the pushing of the blade. With the continuous entry of the material, the material comes in after a certain thrust, which greatly reduces the power consumption of the screw conveyor in the process of operation.

    Feature:
    1. The whole sealing structure can make the screw conveyor in operation without material leakage, protect the working environment.
    2. According to different working conditions, the equipment material can choose carbon steel, stainless steel or other alloy steel.
    3. Simple structure, small cross-section size to facilitate the flexible layout of screw conveyor. Under the same conditions, compared with other conveying equipment, screw conveyor is more cost-effective.
    4. According to end-user requirements, the screw conveyor can be provided with multiple feeding inlets and discharge outlets.
    5. Fully sealed structure can make the screw conveyor used in dust, corrosion, explosion-proof and other hazardous environments.


    Drawing:
    OEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger Conveyor

    Product Display

    OEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger ConveyorOEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger ConveyorOEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger Conveyor
    OEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger Conveyor
    OEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger Conveyor
    OEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger Conveyor

    Certifications

    OEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger Conveyor

    Related Products

    OEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger Conveyor
    Company Profile


    Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd was established in 2005. "Kaixi makes and serves the whole world" is the common pursuit and goal of all Kaixi people. Our company will honor our promise to customers with the business philosophy of "better technology, higher quality and better service", and make Kaixi manufacturing become the benchmark of Chinese manufacturing and go global! Welcome people from all walks of life to visit our company for on-the-spot investigation and negotiation.

    OEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger ConveyorOEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger Conveyor

    We are factory and doing traditional export business more than 15 years!
    If you have any demand for our products, please feel free to contact me.

    Packaging & Shipping

    OEM Custom Spiral Tube Elevator Flour Powder Screw Conveyor Auger Conveyor

    FAQ

    Q1: Are you trading company or manufacture?
    A: We are metal factory only for oversea trading.

    Q2: How long is your delivery time?
    A: Generally 5~10 days for sample.and 20-40 days for mass production. it is depends on order quantity.

    Q3: Do you provide samples?Is it free or extra?
    A: Yes, we could offer the sample for free charge once customer place batch order.

    Q4: What is your terms or payment?
    A: Payment<1000USD shall be 100% T/T in advance. Payment>USD1000, 50% T/T in advance, pay balance before shippment.

    Q5: Can you produce order and according to the samples?
    A: Yes, we can produce by your samples .

    Q6: How to get the quote ?
    A: Please send your 3D drawings(PDF,STP, IGS, STL...) to us by email with the material, surface treatment and QTY, then offer the best price for you within 12 hours.

    Q7: What are your shipping way?
    Sample order: by air freight with 7-15 days.
    Batch order: by sea ship( or by train to Europe) with 30-40 days.
