US ODM/OEM Stainless Steel Screw Auger Feeder for Concrete Powder Custom Conveyor System Mining Transport

Ask Lasest Price
Brand Name :	WeSeW
Model Number :	AC0031-2
Certification :	CE,UL
Payment Terms :	T/T, Western Union
Supply Ability :	500000/Year
Delivery Time :	10-20 working day
Price :	US$200~US$1,000 per pc

Add to Cart

Product Details
Company Profile

US ODM/OEM Stainless Steel Screw Auger Feeder for Concrete Powder Custom Conveyor System Mining Transport

OEM Custom Stainless Steel Conveyor System Auger Conveyor for Concrete Powder

Applicable Industries	Food industry, Chemical Industry, Metallurgical Industr...
Material	Carbon steel & Stainless steel
Warranty	1 Year
Machinery Test Report	Provided
Condition	New
Structure	Spiral Type
Size	Customize
Structure Type	U Shape/ Tube Shape
Layout Form	Horizontal or Inclined
Product name	Screw Conveyor
Usage	Material Transmission
Advantage	High Efficiency Low Cost
Packing	Wooden box

Product Introduction:
Tubular screw conveyors and feeders have a wide range of applications in powder and granular material handling. Depending on the material being transported, different types of conveyors and feeders can be selected, for example: concrete products (cement, fly ash, filler dust, dust), bituminous products (hot and cold process dust), building ready-mix materials (Dried lime, sand, cement, fillers), glass technology (limestone, soda ash, sand, etc.), foundry (sand, bentonite), etc.

Structure size:

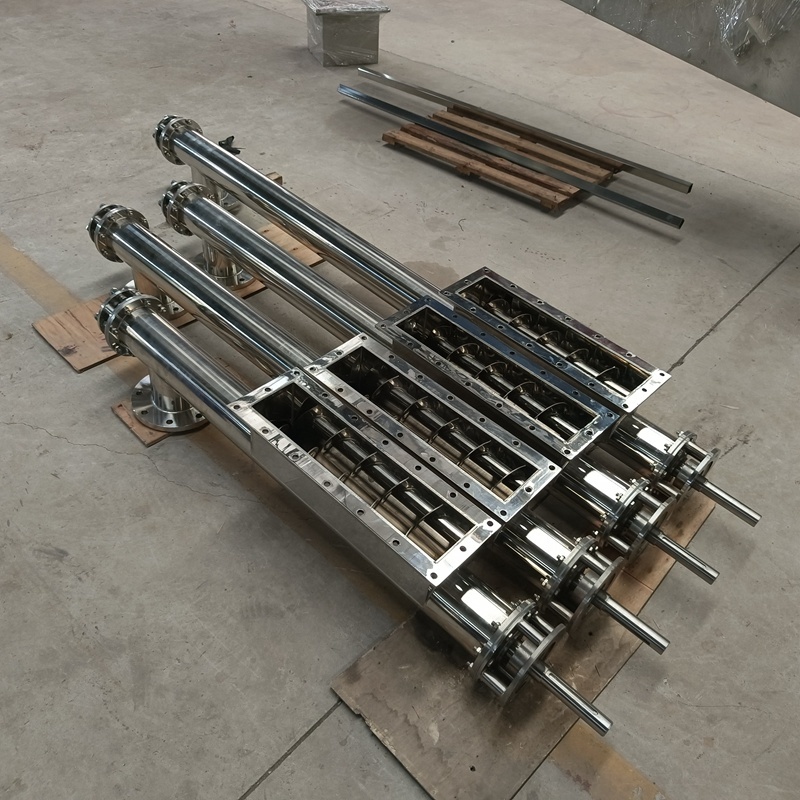

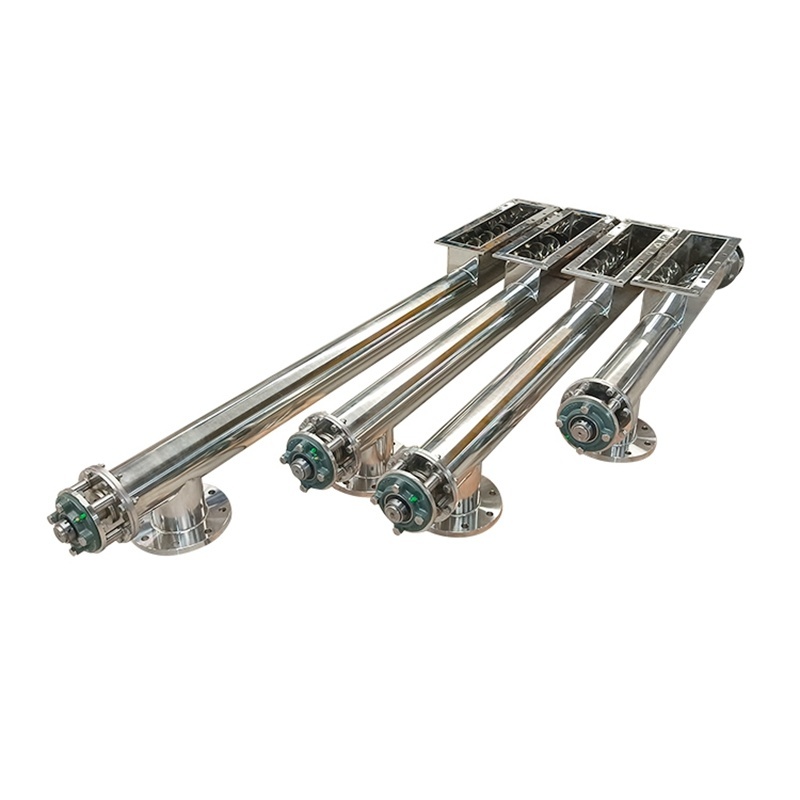

Tubular screw conveyor includes welding end flange, feed port, discharge port, observation window below the feed port and middle hanging bearing, spiral blade welded on the center pipe, the end bearing assembly contains self-adjustment Shaft sealing equipment, splined bushings, and lifting eye for each pipe section. Spiral blade types are small in overall size, compact in size, and spare parts are less in number. Maintenance is easy to install.

Advantages:
1. The structure is relatively simple and the cost is low.
2. Reliable work, easy maintenance and management.
3. Compact size, small cross-section size, small footprint. It is easy to get in and out of hatches and carriages during unloading operations at the port.
4. Sealed delivery can be achieved, which is conducive to the delivery of materials that are easy to fly, hot and odor, can reduce environmental pollution, and improve the working conditions of port workers.
5. Easy to load and unload. The horizontal screw conveyor can be loaded and unloaded at any point on its conveying line; the vertical screw conveyor can be equipped with a relative screw type picking device and can have excellent reclaiming performance; the screw shaft directly contacting the material pile has automatic retrieving. The capacity can be used as a reclaimer for other types of unloading machinery at ports.
6. The reverse conveying can also enable a conveyor to convey material in two directions at the same time, namely to the center or away from the center.
7. The unit consumes more energy.
8. The materials are easily crushed and worn in the process of transportation, and the spiral blades and troughs are also worn more seriously.

OEM Concrete Powder Custom Stainless Steel Conveyor System Auger Conveyor

Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd was established in 2005. "Kaixi makes and serves the whole world" is the common pursuit and goal of all Kaixi people. Our company will honor our promise to customers with the business philosophy of "better technology, higher quality and better service", and make Kaixi manufacturing become the benchmark of Chinese manufacturing and go global! Welcome people from all walks of life to visit our company for on-the-spot investigation and negotiation.

OEM Concrete Powder Custom Stainless Steel Conveyor System Auger Conveyor

We are factory and doing traditional export business more than 15 years!
If you have any demand for our products, please feel free to contact me.

OEM Concrete Powder Custom Stainless Steel Conveyor System Auger Conveyor

Q1: Are you trading company or manufacture?
A: We are metal factory only for oversea trading.

Q2: How long is your delivery time?
A: Generally 5~10 days for sample.and 20-40 days for mass production. it is depends on order quantity.

Q3: Do you provide samples?Is it free or extra?
A: Yes, we could offer the sample for free charge once customer place batch order.

Q4: What is your terms or payment?
A: Payment<1000USD shall be 100% T/T in advance. Payment>USD1000, 50% T/T in advance, pay balance before shippment.

Q5: Can you produce order and according to the samples?
A: Yes, we can produce by your samples .

Q6: How to get the quote ?
A: Please send your 3D drawings(PDF,STP, IGS, STL...) to us by email with the material, surface treatment and QTY, then offer the best price for you within 12 hours.

Q7: What are your shipping way?
Sample order: by air freight with 7-15 days.
Batch order: by sea ship( or by train to Europe) with 30-40 days.
