Heat Resistant Inclined Sawdust Small Auger Conveyor Transportation Grain Screw Auger

Ask Lasest Price
Price :	US$8,000~US$30,000 per pc
Payment Terms :	T/T, Western Union
Supply Ability :	500000/Year
Delivery Time :	10-20 working day
Brand Name :	WeSeW
Model Number :	AC0042
Certification :	CE,UL

Add to Cart

Product Details
Company Profile

Heat Resistant Inclined Sawdust Small Auger Conveyor Transportation Grain Screw Auger

OEM Custom Large Capacity Stainless Steel Inclined Sawdust Screw Auger Conveyor

Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Farms...
Material	Stainless Steel 304
Structure	Conveyor System
Warranty	1 Year
Machinery Test Report	Provided
Core Components	Motor, Bearing, Gear, Gearbox, Engine
Usage	Material Transmission
Feature	Simple Operation
Size	Customized
Feeding materials	Small Block Material
Condition	New
Material Feature	Fire Resistant
Voltage	Customized
Dimension(LWH)	Customized Size
Width or Diameter	Customized
Application	Screw Conveyor

Product Introduction:

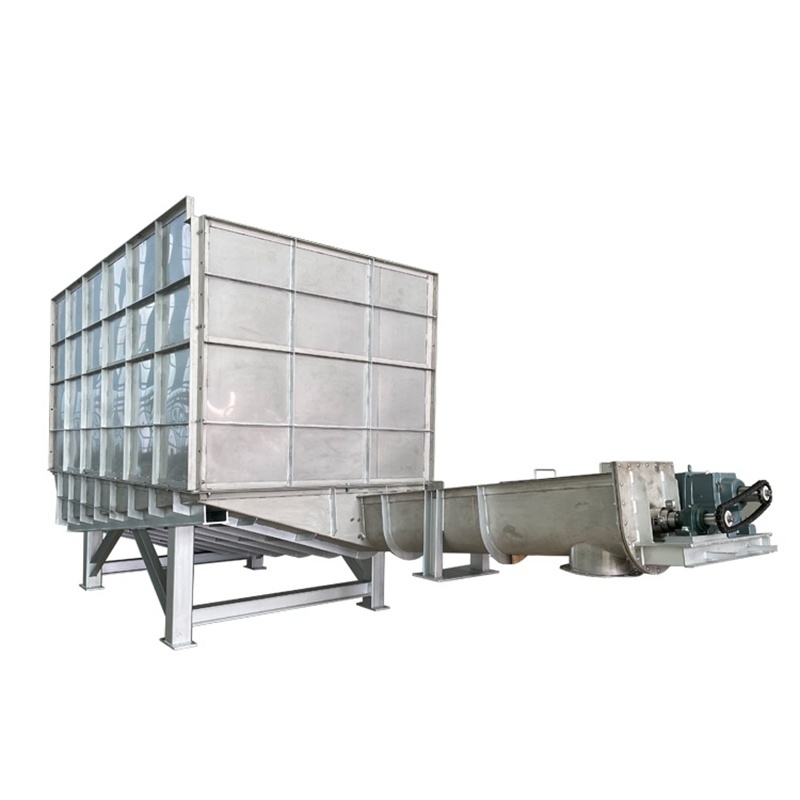

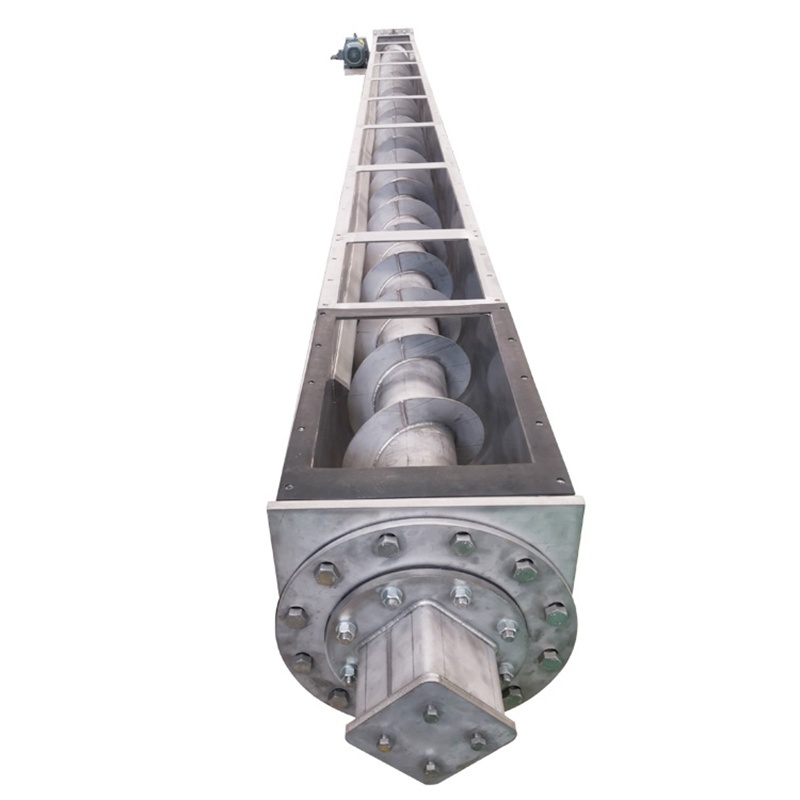

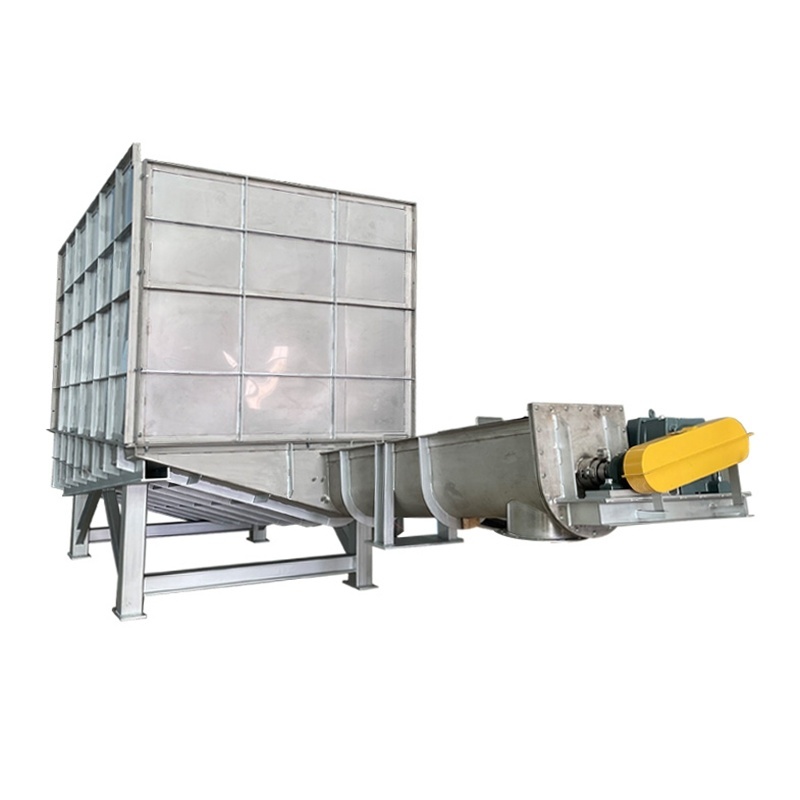

The screw conveyor trough is made in the shape of letter U. Used to transport powder, granules and dry loose materials. It consists of two bearings seats, flights, shaft, bearing housing and driven equipment, etc. Shaft and screw flights are welded to the center pipe. Rotations are initiated by the engine and then the material is transported along the screw conveyor from the inlet to the outlet. Screw conveyor for animal by-products processing can be divided into 3 separate groups: raw material handling, process conveyors, and press cake handling.
In general, all screw conveyors look similar, but it differs due to the properties of processing material. Material can be cold, hot, wet, fatty, or dry. Design is made in order to achieve the best possible performance. The machine can be made according to the customer's requirements. Different options are available: variable pitch of the flight, extra inlet, extra outlet etc. Screw conveyor can be made from carbon steel or stainless steel.

Features:
1. Fully automatic electric protection can be co-controlled with sludge dewatering system.
2. Compact structure, convenient installation with expansion bolts.
3. Using wear-resisting material in the inner layer of trough, its examining and repairing is convenient.
4. Closed running makes the noise low and surroundings better.
5. Its length, angle and discharging hopper can be manufactured according to customer's requirements.
6. The flight is made of stainless steel which is strong enough and anti-corrosive.

Application Industry:
Fish, feathers, offal, press cake, sludge, fish Meal, meat and bone meal, cold, hot, wet, fatty and dry applications.

OEM Custom Large Capacity Stainless Steel Inclined Sawdust Screw Auger Conveyor

Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd was established in 2005. "Kaixi makes and serves the whole world" is the common pursuit and goal of all Kaixi people. Our company will honor our promise to customers with the business philosophy of "better technology, higher quality and better service", and make Kaixi manufacturing become the benchmark of Chinese manufacturing and go global! Welcome people from all walks of life to visit our company for on-the-spot investigation and negotiation.

OEM Custom Large Capacity Stainless Steel Inclined Sawdust Screw Auger Conveyor

We are factory and doing traditional export business more than 15 years!
If you have any demand for our products, please feel free to contact me.

OEM Custom Large Capacity Stainless Steel Inclined Sawdust Screw Auger Conveyor

Q1: Are you trading company or manufacture?
A: We are metal factory only for oversea trading.

Q2: How long is your delivery time?
A: Generally 5~10 days for sample.and 20-40 days for mass production. it is depends on order quantity.

Q3: Do you provide samples?Is it free or extra?
A: Yes, we could offer the sample for free charge once customer place batch order.

Q4: What is your terms or payment?
A: Payment<1000USD shall be 100% T/T in advance. Payment>USD1000, 50% T/T in advance, pay balance before shippment.

Q5: Can you produce order and according to the samples?
A: Yes, we can produce by your samples .

Q6: How to get the quote ?
A: Please send your 3D drawings(PDF,STP, IGS, STL...) to us by email with the material, surface treatment and QTY, then offer the best price for you within 12 hours.

Q7: What are your shipping way?
Sample order: by air freight with 7-15 days.
Batch order: by sea ship( or by train to Europe) with 30-40 days.
