OEM Custom Conveyor Flexible Screw Flake Ice Screw Auger Conveyor
| Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Construction... |
| Material | Stainless steel |
| Structure | Screw conveyor |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Core Components | Motor, Gear, Gearbox, Engine |
| Usage | Production |
| Advantage | High Efficiency Low Cost |
| Speed | High Speed |
| Condition | New |
| Material Feature | Oil Resistant |
| Voltage | 220v or as your local power |
| Dimension(L*W*H) | Customized Size |
| Width or Diameter | Customized Size |
| Video outgoing-inspection | Provided |
| Application | Automation Equipment |
| Function | Multifunctional |
| Feature | High Efficiency |
| Package | Wooden Case |
Product Description:
Shaftless screw conveyor is a kind of machine for conveying goods.
Compared with the traditional shafted screw conveyor, it adopts the
design of no central shaft and uses the integral steel screw with
certain pumping properties to push materials, so it has the
following outstanding advantages: Strong anti-winding.
Product Structure:
1. Polymer wear-resistant and high-temperature resistant liner;
2. Thickened non-pumping 16 managanese steel blades;
3. Shaft connection thickened round tube fixed;
4. Reinforced concave-convex flange double-layer reinforcement;
5. All copper core motor;
6. Guomao reducer.
Product Features:

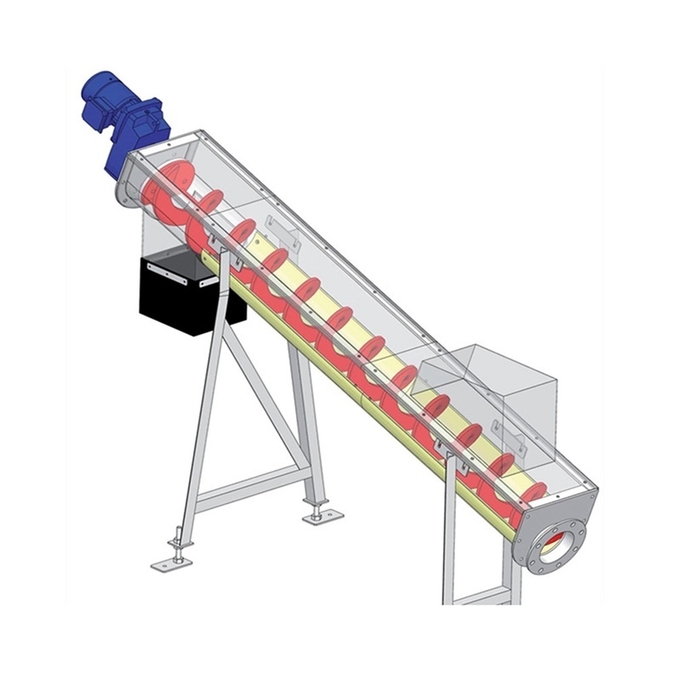

Shaftyless screw conveyor is mainly composed of driving device,
head assembly, casing, shaftless screw body, tank lining plate,
feeding port, discharging port, cover (when necessary), base and so
on.
Driving device: When using a cycloidal pinwheel reducer or a
shaft-mounted hard-tooth surface gear reducer, the driving device
should be set at the end of the discharge port as much as possible,
so that the screw body is in a tension state during operation.
The head is equipped with a thrust bearing, which can bear the
axial force generated when conveying materials.
Chassis: The chassis is U-shaped or O-shaped, with a rain-proof
cover on the upper part, and the material is stainless steel or
carbon steel or FRP.
Shaftless Spiral: The material is stainless steel or carbon steel.
Tank liner: The material is wear-resistant plastic plate or rubber
plate or cast stone plate, etc.
Inlet and outlet: There are two kinds of square and round.
Generally, the form of inlet and outlet is determined by the use of
household decision.
SScope Of Application:
Shaftless screw conveyors have been widely used in various sectors
and industries of the national economy, such as building materials,
metallurgy, chemical industry, electric power, coal, machinery,
light industry, grain and food industries; suitable for conveying
powder, granular, small block materials, such as cement, pulverized
coal, grain, fertilizer, ash, sand, coke, etc.
